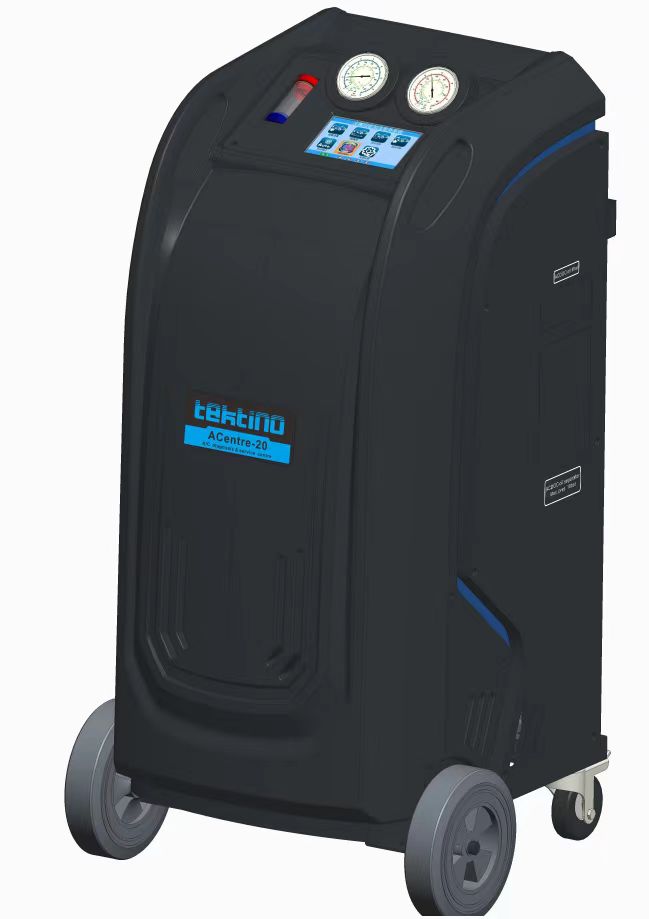

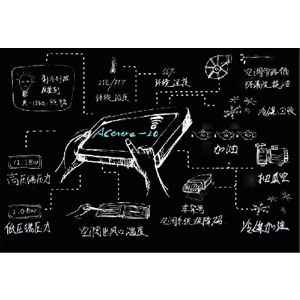

- ACentre-20, Tektino A/C diagnosis and service center, is designed and manufactured exactly according to the working principle of automobile air conditioners and common failure mechanism to diagnose automobile air conditioners (pressure, temperature, humidity, OBD error code and data stream), and it integrates automobile services (Flush for compressor oil replace, recovery, vacuum, oil and refrigerant charge, with both individual and automatic function modes). 3 PCT international patents have been applied, and it occupies the commanding heights of the automotive air-conditioning industry.
SRR (Supreme Recovery Rate) system, patent pending, assures a recovery rate higher than 99%.
COR (Compressor Oil Recovery) system, patent pending, recovers 100% compressor oil from A/C loop for complete compressor oil replacement.
- Message
Functions：
1.Recovery with SRR feature, SRR (Supreme Recovery Rate) system, patent pending, assures a recovery rate higher than 99%.
2.Vacuum/vacuum leak test
3.Charge (including PAG or POE oil injection, UV injection and refrigerant charge)
4.Automatic mode (Full cycle of recovery, vacuum and charge)
Optional：
1.110V 60Hz
2.HFO-1234yf
3.Flush, COR (Compressor Oil Recovery)
4.Refrigerant Identifier for either R134a or HFO-1234yf
5.A/C Diagnosis function
6.A/C system leak detection
Specifications：
1.Input power: AC220V, 50/60Hz
2.Compressor power: 3/8HP
3.Display: 7'' touch screen
4.Max. refrigerant recovery speed: 0.25Kg/min. Patent pending SRR(Supreme Recovery Rate) system ensures 99% recovery rate
5.Vacuum pump capacity: 120L/min
6.Evacuation time selection: 2-60 min
7.New oil vessel: 250ml capacity, PAG/POE/UV
8.Used oil vessel: 400ml capacity
9.Refrigerant charging speed: Max. 1Kg/Min, liquid charging
10.High capacity spin-on filter-drier: 600ml capacity, for recovering totally 100KG refrigerant
11.Accuracy of refrigerant cylinder load cell: ±5g
12.Refrigerant cylinder: 10KG, with heater band
13.Machine maximum working pressure: 20bar with electronic high-pressure protection warning and safety release valve
14.Gauges: High side -1bar~30bar, Low side -1bar~16bar
15.Digitally displayed cylinder pressure and temperature, electronically controlled air purge
16.Automatic Non-condensable purge (NCG) based on HFO-1234yf pressure-termperature nature
17.Vehicle A/C database included
18.Electronically monitoring and displaying system service intervals
19.Thermal printer
20.Package: 830*700*1360mm; Unpacked: 785*652*1235mm
