Main Functions：

1.Tank fill

2.Recovery

3.Vacuum

4.Oil injection

5.Charge

6.Fully automatic

Optional：

1.110V 60Hz

2.HFO-1234yf

3.POE injection

4.UV dye injection

5.Vacuum leak test

6.120L/min vacuum pump

7.Automatic air purge/Thermal printer

8.Flush, COR (Compressor Oil Recovery)

Specifications：

1.Input power: AC220V±10%~50/60Hz

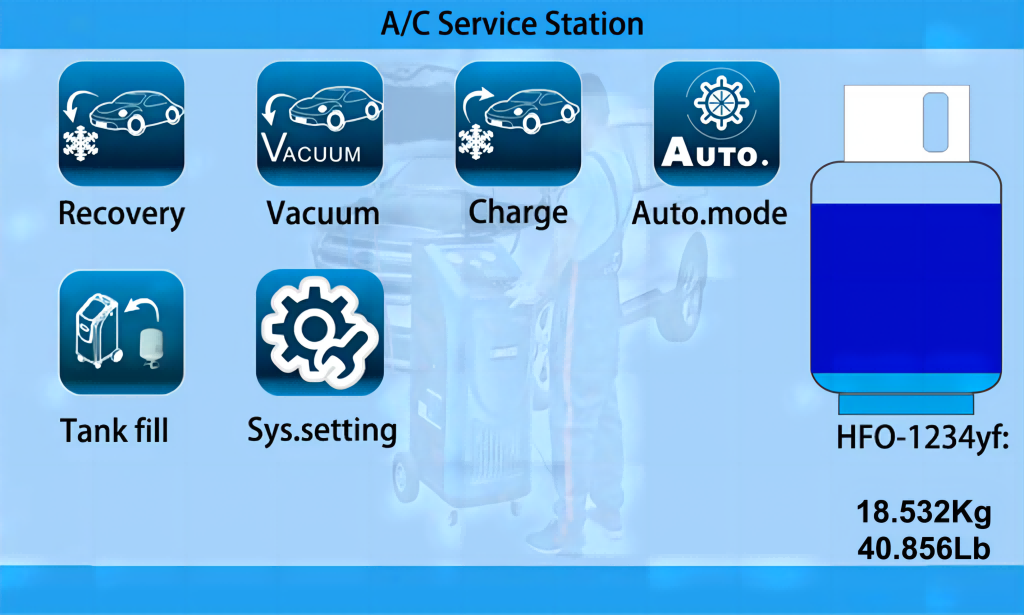

2.Display: 7'' Touch screen

3.Compressor power: 3/8HP

4.Recovery rate: ≥95%

5.Average gas state refrigerant recovery: 250g/min

6.Heater band, Condenser and cooling fan included

7.Vacuum pump capacity: 60L/min

8.Gas cylinder capacity: 10KG

9.Accuracy of gas cylinder load cell: ±10g

10.New/used oil bottle capacity: 250ml/400ml

11.Accuracy of New/Used oil/UV bottle load cell: ±5g

12.Drier-filter capacity: 600ml

13.Max. Pressure: 20bar

14.High pressure gauge range: -1~30bar

15.Low pressure gauge range: -1~16bar

16.Charge speed: 2Kg/Min(max.)

17.Automatic service reminding

18.Amply database, free update

19.Highly integrated pipeline manifold

20.Dimensions:Package: 710*690*1180mm; Unpacked:600*600*1050mm
