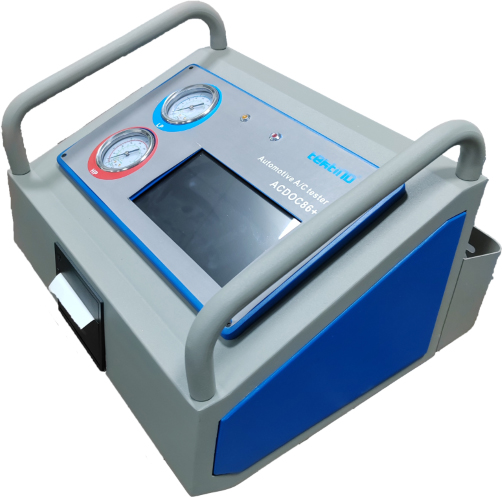

- ACDOC86+ is further developed based on TEKTINO ACDOC86.It integrates A/C diagnosis (based on data of pressure of both high and low sides, refrigerant identification, ambient temperature, ambient humidity, cabin air outlet temperature, human inspection) and NDIR leak detection.
ACDOC86+ offers professional solution for R-134a or HFO- 1234yf automotive A/C system, to help garage owners to establish modernized,process-oriented,digitalized and smart business.

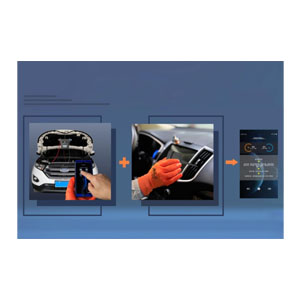

Normal A/C diagnosis is made by technicians with individual tools, such as (not limited to) pressure gauges, temperature test probes, leak detectors, refrigerant identifiers and most importantly, technicians' WISDOM. The innovative ACDOC86+ can handle all the above jobs (yes, includes human WISDOM) with more accurate and uniform results,and upload all the test data and diagnosis results in server, aiming at offering ioT solution for automotive A/C business
- Message
Functions:
A/C diagnosis:Provides technicians with process-oriented, digitalized and standardized A/C diagnosis,and dynamically
tests temperature(both ambient and air outlet in cabin), pressure(high side and low side),refrigerant concentration,
and humidity, and instructs technicians to perform human tests on appearance,abnormal noise, odor, etc., to ensure
a thorough A/C system inspection with no omissions, and intelligently analyzes the working conditions of the A/C
parts (parts of A/C loop, electronic control, fluid media and air distribution) based on these dynamic data.ACDOC86+
is the world's most comprehensive diagnostic and analysis instrument for automobile air conditioners. After all the
tests are completed, a digital diagnosis form is presented to the car owner,to help garages make service proposals
with transparency and data basis.

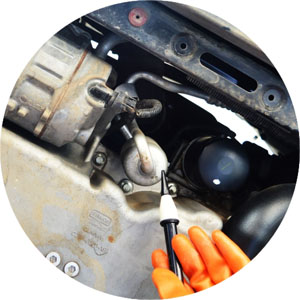

NDIR leak detection: Aiming at the most troublesome and frequent A/C problem__leak, ACDOC86+ carries out accurateleak detection, and can assure to detect the leak in 10 minutes for the 5g/year micro-leak point. Compared with
the high-pressure soapy water leak detection method, UV dye leak detection method, and halogen electronic leak
detection method in the market, ACDOC86+ has obvious advantages in high efficiency, interference free, labor
saving, and accuracy.
Specifications:
1.Input power: 12VDC automotive battery,or 110V-250VAC
2.Refrigerant identification precision: 0.1%
3.Refrigerant identification time: 120 seconds
4.Can identify automotive A/C refrigerant or refrigerant in storage tank
5.Ambient temperature range for A/C precise diagnosis: 20-50℃
6.Pressure transducer range: -1-30bar
7.Pressure transducer precision: 0.1bar
8.Air outlet temperature sensor range: 0-100℃
9.Air outlet temperature sensor precision: 0.1℃
10.Time for refrigerant identification and A/C testing: 6 minutes
11.Leak detection range: 5g/year
12.Leak detection refrigerant:R-134a(free of interference of other gases)
13.Estimated leak detection time of each vehicle: 10-15min.
Optional:
1.Thermal printer
2.HFO-1234yf applicable
