Product Info：CCC-200
-

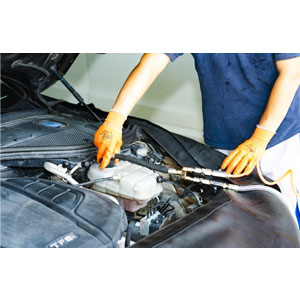

- Without disconnecting hoses, coolant is easily changed by inserting a conical adapter into reservoir tank. The coolant exchange job can be done by deep vacuum within 5 minutes, instead of half hour taken in hose disconnecting and restoring job. Also, this vacuum exchange process can avoid air pockets to save air purge time after coolant exchange.
The oil receiving pan is optional,for some vehicle that do not have straight-in reservoir tank design (can not utilize conical adapter to do coolant exchange through reservoir tank),thus coolant exchange by gravity can be effected.
The CCC-200 is not only an efficient and time saving equipment,but also helps keep your garage floor clean, avoid ground pollution caused by coolant dripping during hose disconnecting job caused by other coolant exchange methods.
- Message
Functions：
1.Used fluid extraction
2.Vacuum
3.Add new fluid
4.Empty new/used fluid tank
Features：
1.Dual-manual valve design,easy operation
2.Directly connect shop air,zero failure
3.Whole work process visible through fiber glass tanks
4.Support off/on-vehicle exchange
5.Full coverage adaptors (covering more than 90% vehicles on the market)
Specifications：
1.New and used oil capacity: 15L
2.Pressure gauge: -1~5bar
3.Max.work pressure: 3bar
4.Lengthof return/out hose: 3m
5.Coolanthoses: φ25mm, φ32mm, φ38mm, φ42mm, φ45mm; φ60mm; φ67mm
6.Package:1390*540*760mm; Unpakage:480*630*1250mm
