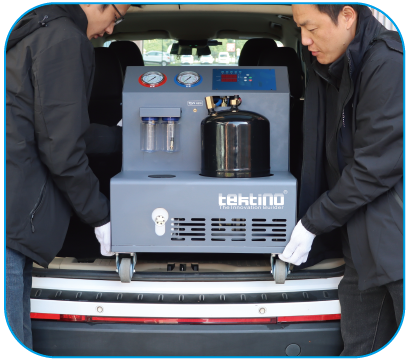

- AC100（Recycling and recharging only) and AC100+ (Recycling, recharging and flush for compressor oil replacement) are designed and manufactured for workshops with limited budget for AC business. The compact machine can be transported with SUV or pick-up, which makes outing for on-field services avail able. To minimized its cost for the purpose of getting access to more workshops available, automatic oil injection is not available (instead, oil injected with manual valve), and no heater-band is bond around the refrigerant tank (The performance of the machine in winter is affected).
- Message
Function selection:
1.Recovery
2.Vacuum
3.Oil injection
4.Charge
5.Flush (Optional)
Specifications:
1.Input power: AC220V±10％~50/60Hz，or AC110V±10％~60Hz
2.Net weight: 57kg; Gross weight: 75kg
3.Operation temperature: 5~50℃
4.Compressor power: 3/8HP
5.Vacuum pump capacity: 60L/min, vacuum time range: 1-60minutes
6.Max. refrigerant recovery speed: 0.25Kg/min(liquid state refrigerant)
7.Charge speed: 2Kg/Min(max.)
8.Accuracy of gas cylinder load cell: ±10g
9.Gas cylinder: 10KG
10.New and used oil vessel: 250ml, high transparency, NO oil loadcell. Manual oil injection
11.Max. Working Pressure: 20bar
12.Gauges: High side: -1bar~30bar, Low side: -1bar~16bar, cylinder: -1bar~22bar
13.Manual air purge indication, based on refrigerant Pressure -Temperature calculation.
14.Optional: flush function for vehicle compressor oil replacement, flush time set 1-60min.
15.Machine can be supplied to suit either R-134a or HFO-1234yf
16.Dimension: Package:645x610x805mm³
17.Unpacked: 605x570x675mm³, suitable for SUV or pick-up transportation for on-field services
