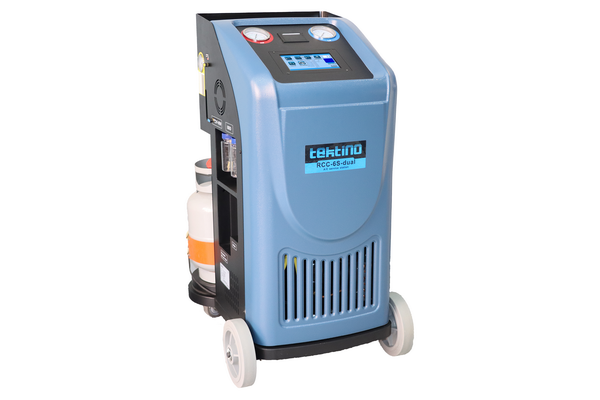

- RCC-6S-dual A/C Service Station is an ideal option for workshops that have requirements of handling both R-134a and HFO-1234yf refrigerants. The loss of refrigerant is minimized to less than 50 gram at shifting from one refrigerant to another, and deep internal evacuation ensures zero cross contamination between two refrigerants. The machine is equipped with 2 refrigerant tanks, which saves the operators' time of replacing tanks.
- Message
Functions：
1.Tank fill
2.Recovery
3.Vacuum
4.Oil injection
5.Charge
6.Fully automatic
Optional Functions:
1.AC110V 60Hz
2.Oil bottle load cell
3.Printer＆Vacuum leak test
4.Two dry filters available
5.Identifier for either R134a or R1234yf
Specifications：
1.Input power: AC220V±10%~50/60Hz,or AC110V±10%~60Hz

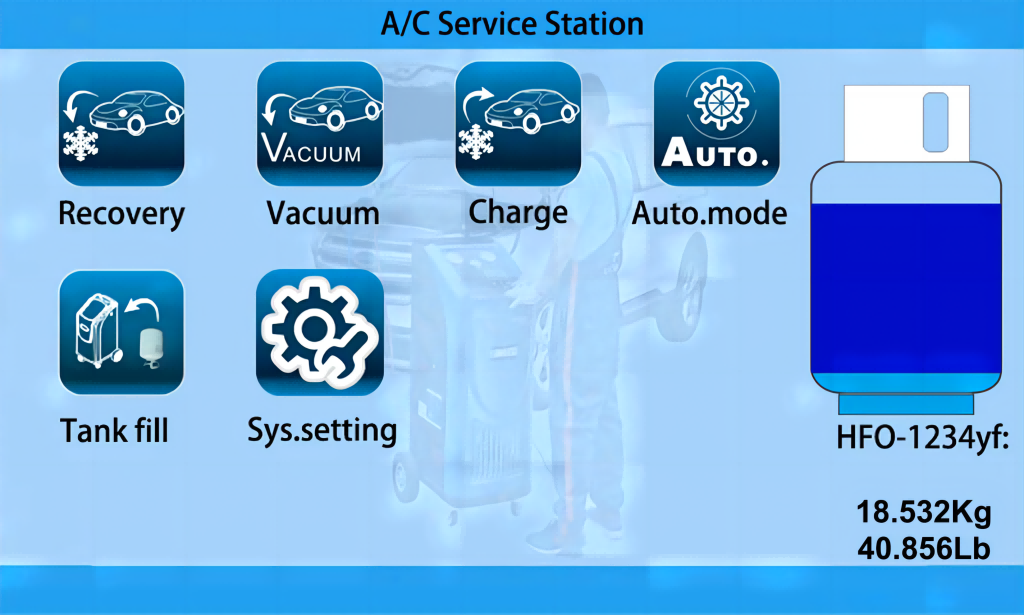

2.Display: 7'' Touch screen
3.Compressor power: 3/8HP
4.Hand valves free
5.Recovery rate: ≥95%
6.Average gas state refrigerant recovery speed (through charge/suction port): 250g/min
7.Vacuum pump capacity: 120L/min,non-sparkle
8.Accuracy of gas cylinder load cell: ±10g
9.New/used oil bottle capacity: 250ml
10.Accuracy of New/Used oil bottle load cell: ±5g
11.Max.Pressure: 20bar
12.Charge speed: 2Kg/Min(max.)
13.High pressure gauge range: -1 bar~30bar
14.Low pressure gauge range: -1bar~16bar
15.A/C database included, free update
16.Thermal printer
17.Dual tank equipped
18.Automatic service reminding
19.Loss of refrigerant during refrigerant change is minimized
