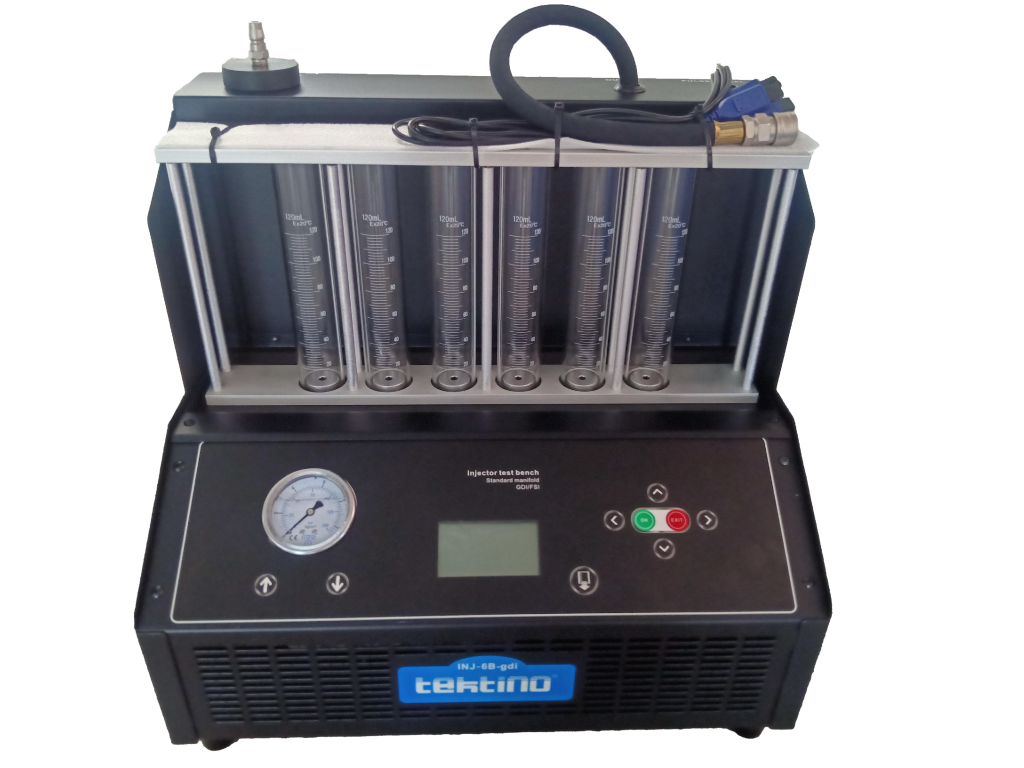

Product Info：INJ-6B-GDI/INJ-8B-GDI
-
- Without sacrificing any function of previous TEKTINO INJ-6B or INJ-8B for normal manifold injectors, the new INJ-6B-gdi and INJ-8B-gdi models are featured in a plus of inspection and cleaning of direct injection gasoline nozzles. Different test modes, with different RPM and duty setting, can be selected for simulating different GDI nozzle working conditions.
- Message
Functions：
1.Standard mainfold&Gdi/Fsi
2.Leakage test
3.Spray/flow test
4.Inductance(mH)
5.Ultrasonic cleaning
6.Auto.cleaning&test
7.On-vehicle cleaning(need to buy optional on-vehicle cleaning kit)
Specifications：
1.Power supply:AC220V ±10%~ 50/60Hz or AC110V± 10%~60Hz
2.Input power:200W
3.Pressure:0~8bar
4.PW range:0.1-30ms,step:0.1ms
5.Timing range:1~30min
6.UItrasonic timing range:0~15min
7.Simulated RPM range:0~9990rpm,step:10rpm
8.Dimensions:Package:670*470*600mm;Unpackage:520*360*460mm
