Functions:
1.Recovery
2.Vacuum
3.Oil injection
4.Charge
5.Fully automatic
Specifications:
1.Hand valves free
2.Input power: AC220V±10%~50/60Hz
3.Recovery rate: ≥95%
4.Compressor output: 1HP(220V); 3/4HP(110V)
5.Vacuum pump capacity: 8.0cfm
6.Accuracy of gas cylinder load cell: ±30g
7.Gas cylinder: 50L, 50Kg Max.
8.Oil bottle capacity: 400ml
9.Max. Pressure: 20bar
10.Charge speed: 2Kg/Min(max.)

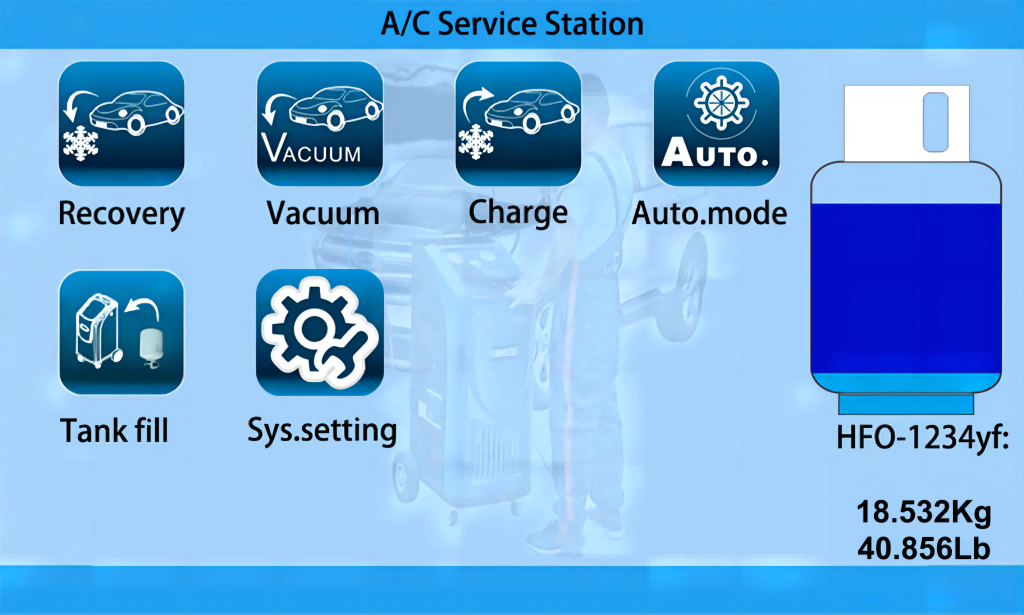

11.Display: 7" Touch Screen
12.Refrigerant hose: 5m
13.High pressure gauge range: -1~30bar
14.Low pressure gauge range: -1~16bar
15.Highly integrated pipeline manifold
16.Pressurization to speed up used oil discharge
17.Automatic service reminding
18.Average gas state refrigerant recovery speed: 980g/min
