Product Info：INJ-6A/INJ-8A
-
- INJ-6A/INJ-8A Injector Cleaner & Tester integrates the most advanced control technology and environmental concepts. INJ-6A/INJ-8A can clean and test all kinds of automotive injectors by simulating engine working conditions and can also on-vehicle clean the fuel supply system.
- Message
Functions：
1. Direct flush
2. Reverse flush
3. Ultrasonic cleaning
4. On-vehicle cleaning
5. Uniformity & Sprayability test
6. Leakage test
7. Injecting flow test
8. Auto cleaning-test function
Features：
1.Stepless pressure regulation technology brings a small oil pressure fluctuation and wide tuning range.
2.Clean and test both high resistance & low resistance injectors.

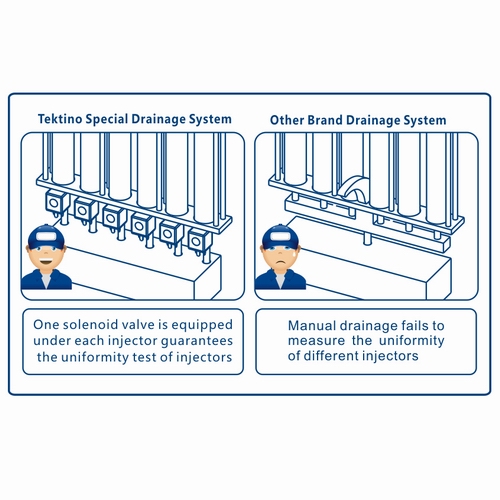

3.Solenoid valve controls drainage of oil
4.Graphic interface
5.LED of the background light

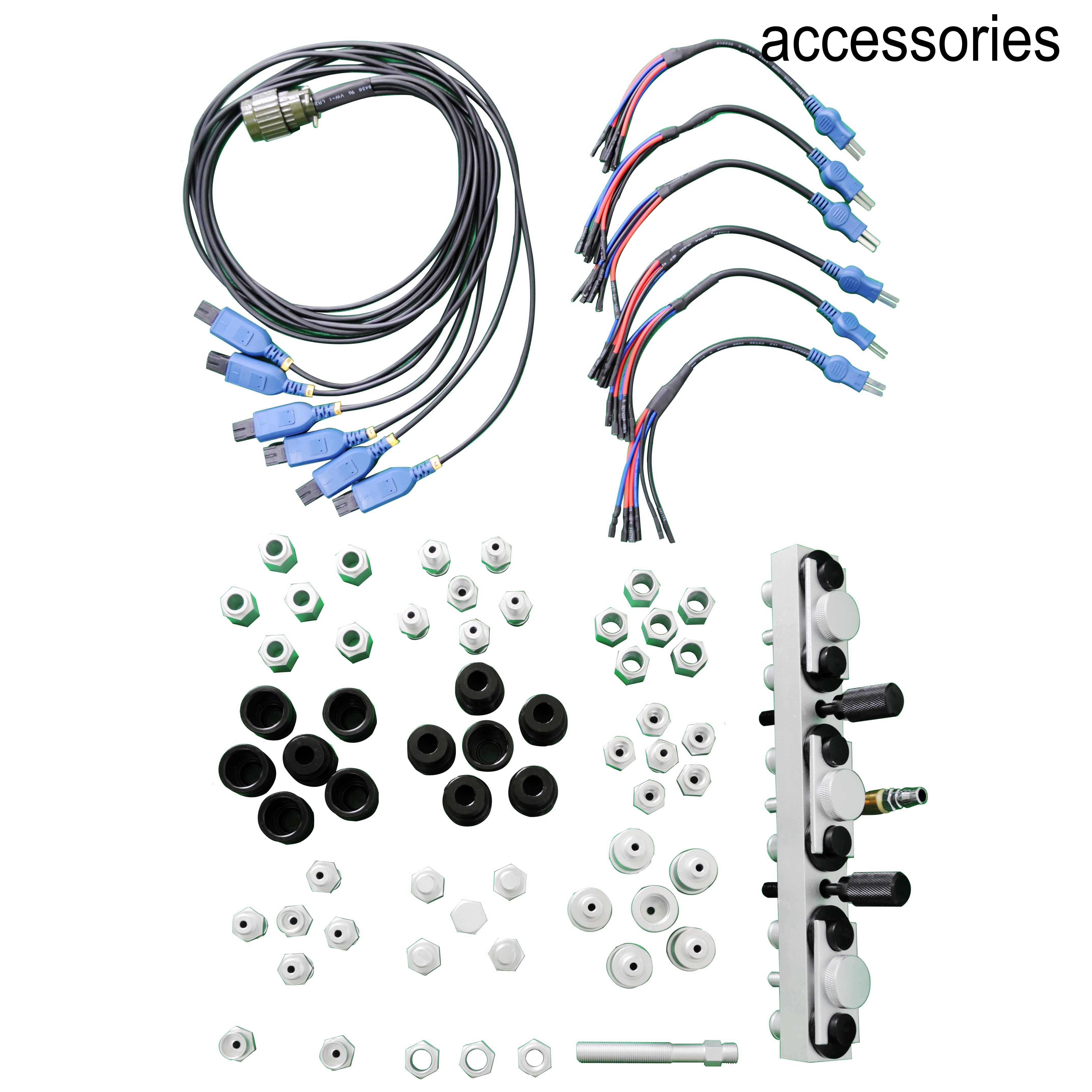

6.Optional adaptor kit package to cover all injectors of different car makes
Specifications：
1.Power supply: AC220V～50/60Hz, AC110V～50/60Hz
2.Input power: 350W
3.Pressure: 0～7bar
4.Flow test accuracy: ±2%
5.Simulated RPM range: 0～9999rpm, Step:10rpm
6.PW range: 0.1～30ms, Step: 0.1ms
7.Timing range: 1～30min
8.Ultrasonic timing range: 1～15min
9.Dimensions: 650*620*1400mm
10.Gross weight: 78Kg
