Main functions：

1.Tank fill

2.Recovery

3.Vacuum

4.Oil injection

5.Charge

6.Fully automatic

Optional：

1.110V 60Hz

2.HFO-1234yf

3.UV dye injection

4.Vacuum leak test

5.Automatic air purge

6.120L/min vacuum pump

7.Flush, compressor oil recovery

Specifications：

1.Input power: AC220V±10%~50/60Hz, or AC110V±10%~60Hz

2.Recovery rate: ≥95%

3.Compressor power: 3/8HP

4.Vacuum pump capacity: 60L/min

5.Accuracy of gas cylinder load cell: ±10g

6.Gas cylinder capacity: 10KG

7.New/used oil bottle capacity: 250ml/400ml

8.Accuracy of New/Used oil/UV bottle load cell: ±5g

9.Max.Pressure: 20bar

10.Charge speed: 2Kg/Min(max.)

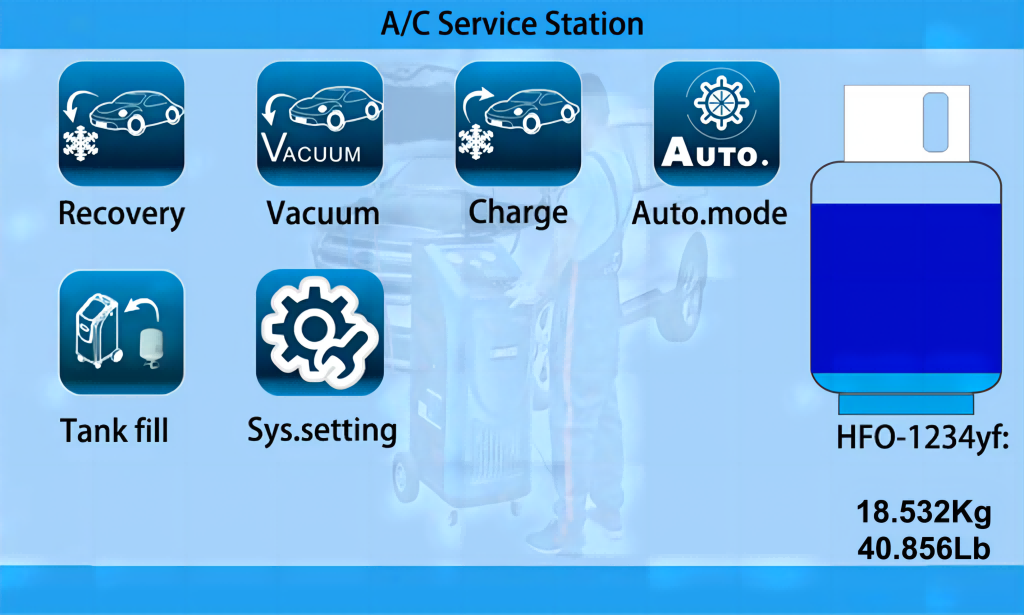

11.Display: 7'' Touch screen

12.High pressure gauge range: -1~30bar

13.Low pressure gauge range: -1~16bar

14.Average gas state refrigerant recovery speed: 250g/min

15.Thermal printer

16.Hand valves free

17.Amply database, free update

18.Highly integrated pipeline manifold

19.Heater band, Condenser and cooling fan included

20.Pressurization to speed up used oil discharge

21.Dimensions: Package: 710*640*1175mm; Unpacked: 660*580*1060mm
