Main functions：

1.Tank fill

2.Recovery

3.Vacuum

4.Oil injection

5.Charge

6.Fully automatic

Optional：

1.HFO-1234yf

2.110V 60Haz

3.120L/min vacuum pump

4.Flush, compressor oil recovery

Specifications:

1.Input power: AC220V±10%~50/60Hz, or AC110V±10%~60Hz

2.Recovery rate: ≥95%

3.Compressor power: 3/8HP

4.Vacuum pump capacity: 60L/min

5.Accuracy of gas cylinder load cell: ±10g

6.Gas cylinder capacity: 10KG

7.New/used oil bottle capacity: 250ml/400ml

8.Max. Pressure: 20bar

9.Charge speed: 2Kg/Min(max.)

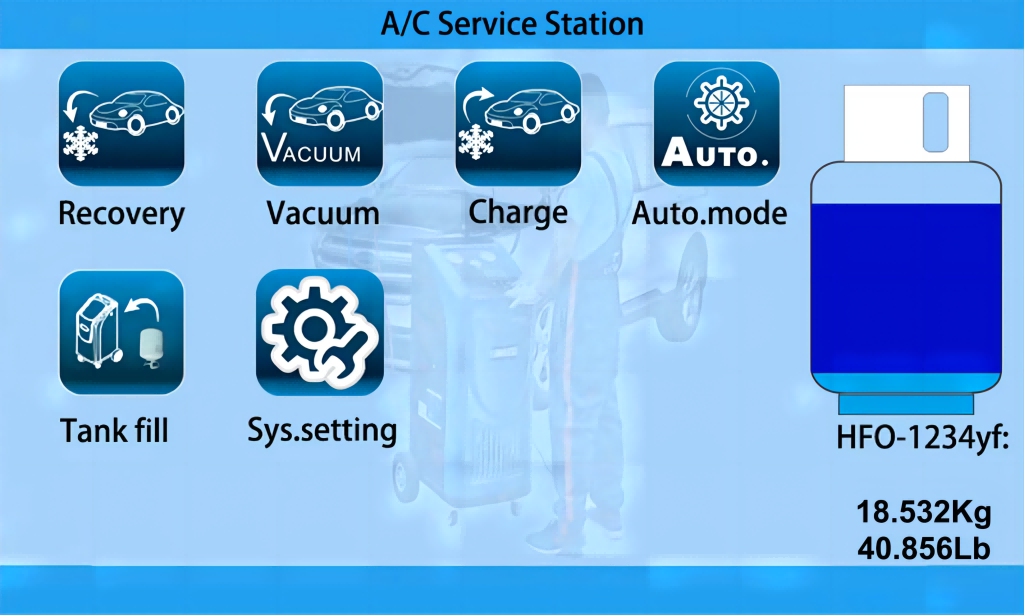

10.Display: 7'' Touch screen

11.High pressure gauge range: -1~30bar

12.Low pressure gauge range: -1~16bar

13.Average gas state refrigerant recovery speed: 250g/min

14.Hand valves free

15.Amply database, free update

16.Highly integrated pipeline manifold

17.Heater band, condenser and cooling fan included

18.Dimensions: Package:750*650*1175mm; Unpacked: 650*460*980mm
