Product Info：RCC-6S+
-
- Main functions：
1.Recovery
2.Vacuum
3.Oil injection
4.Charge
5.Fully automatic
6.Flush, COR (Compressor Oil Recovery)
Optional：
1.HFO-1234yf
Features：
1.Heater band
2.Hand valves free
3.Amply database, free update
4.Highly integrated pipeline manifold
5.Condenser and cooling fan included
6.Pressurization to speed up used oil discharge
7.Automatic service reminding. The equipment provides 600 operations totally (each recovery or vacuum counts for one operation,and automatic mode counts for 2 operations）between regular maintenance, when 480 operations have been made, the machine automatically reminds to call distributor for service; when 600 operations have been made, the machine cannot be used unless service is done.
Specifications：
1.Input power:AC220V±10%~50/60Hz, or AC110V±10%~60Hz
2.Recovery rate:≥95%
3.Vacuum pump capacity:60L/min
4.Accuracy of gas cylinder load cell:±10g
5.Gas cylinder capacity:13.6KG
6.New/used oil bottle capacity:250ml/400ml
7.Max. Pressure:20bar
8.Charge speed:2Kg/Min(max.)

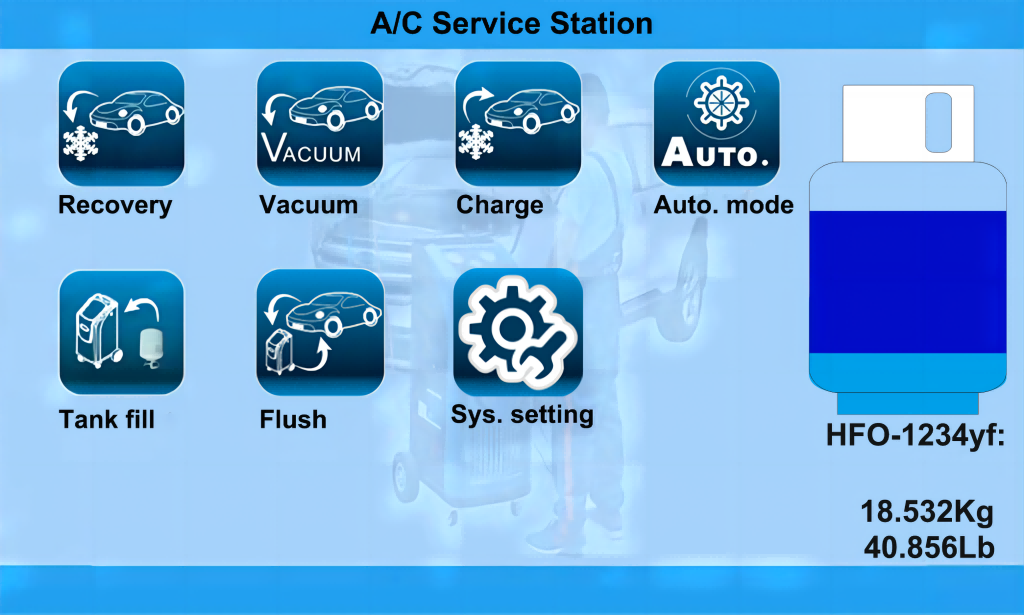

9.Touch screen display
10.High pressure gauge range:-1~30bar
11.Low pressure gauge range:-1~16bar
12.Average gas state refrigerant recovery speed:250g/min
13.Flush (Optional),COR (Compressor Oil Recovery), used oil recovery rate≥95%,
14.Dimensions:Package:750*670*1160mm; Unpacked:630X670X1060mm
- Message

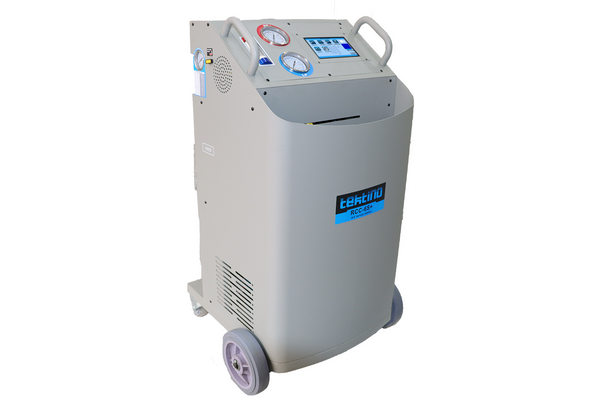

RCC-6S+ A/C Service Station is an entry model, suitable for new A/C practitioners, or for areas where price is sensitive.
