Product Info：RCC-9A+
-

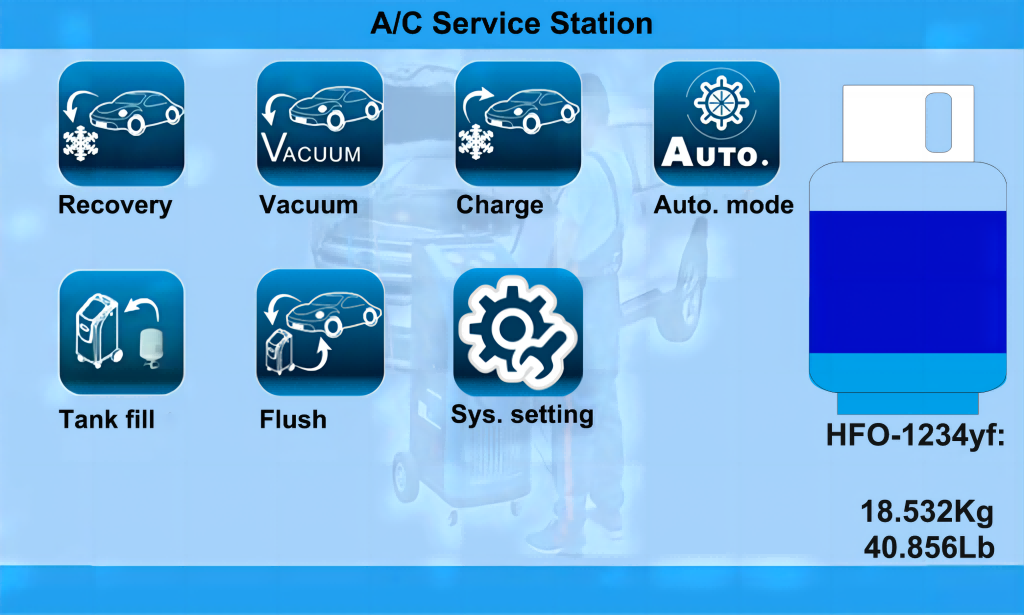

- Main functions：
1.Tank fill
2.Recovery
3.Vacuum
4.Oil injection
5.Charge
6.Fully automatic
Optional：
1.Flush, compressor oil recovery
2.Vacuum leak test
3.120L/min vacuum pump
4.UV dye injection
5.HFO-1234yf
Features：
1.Heater band
2.Hand valves free
3.Amply database, free update
4.Highly integrated pipeline manifold
5.Condenser and cooling fan included
6.Pressurization to speed up used oil discharg
7.Automatic service reminding. The equipment provides 600 operations totally (each recovery or vacuum counts for one operation, and automatic mode counts for 2 operations) between regular maintenance, when 480 operations have been made, the machine automatically reminds to call distributor for service; when 600 operations have been made, the machine cannot be used unless service is done.
Specifications：
1.Input power:AC220V±10%~50/60Hz, or AC110V±10%~60Hz
2.Recovery rate:≥95%
3.Compressor power:3/8HP
4.Vacuum pump capacity:60L/min
5.Accuracy of gas cylinder load cell:±10g
6.Gas cylinder capacity :10KG
7.New/used oil bottle capacity:250ml/400ml
8.Accuracy of New/Used oil/UV bottle load cell:±5g(RCC-8A+）
9.Thermal printer inclued for RCC-8A+
10.Max.Pressure:20bar
11.Charge speed:2Kg/Min(max.)
12.Touch screen display
13.High pressure gauge range:-1~30bar
14.Low pressure gauge range:-1~16bar
15.Average gas state refrigerant recovery speed:250g/min
16.Dimensions:
Package:640*710*1170mm; Unpacked:530X585X1050mm
- Message

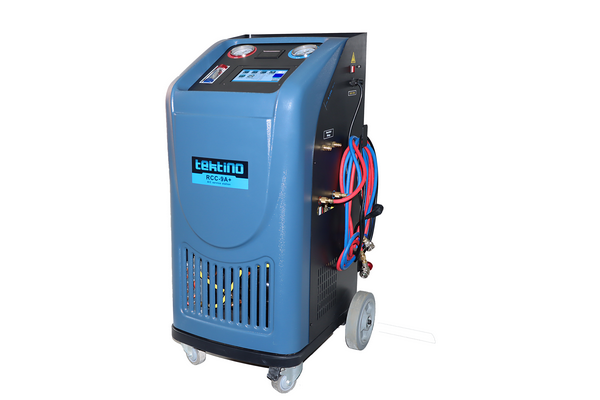

- RCC-9A+ A/C Service Station is very friendly since it's customized to various configurations, to meet different garages' needs. It can be configured to entry model, to meet hybrid or electric vehicle need, even to have COR (Compressor Oil Recovery) function. Tell us what you need, we make your desired machine accordingly.
