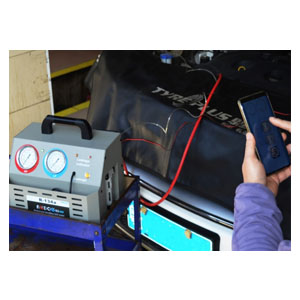

- ACDOC86 mini focus on A/C diagnosis ,based on data of pressure of both high and low sides, ambient temperature,ambient humidity, cabin air outlet temperature, human inspection. Normal A/C diagnosis is made by technicians with individual tools, such as (not limited to) pressure gauges,temperature test probes, leak detectors and most importantly, technicians' WISDOM. ACDOC86 mini with more accurate and uniform results, uploads all the test data and diagnosis results in server, aiming at offering ioT solution for automotive A/C business.
- Message
Functions:

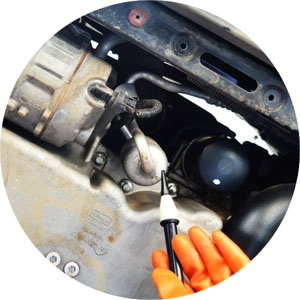

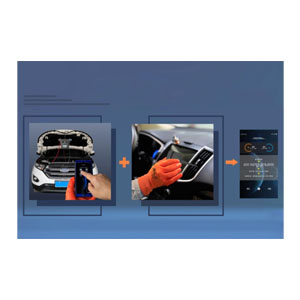

A/C diagnosis: Provides technicians with process-oriented, digitalized and standardized A/C diagnosis,and dynamically tests temperature (both ambient and air -outlet in cabin), pressure(high side and low side),and humidity,and instructs techniciansto perform human tests on appearance,abnormal noise,odor,etc.,to ensure a thorough A/C system inspection with no omissions,
and intelligently analyzes the working conditions of the A/C parts(parts of A/C loop,electronic control,fluid media and air distribution)
based on these dynamic data.After all the tests are completed,a digital diagnosis form is presented to the car owner,to help
garages make service proposals with transparency and data basis.
Specifications:
1.Input power:12VDC automotive battery,or 110V-250VAC
2.APP for android and apple system
3.Ambient temperature range for A/C precise diagnosis:20-50℃
4.Pressure transducer range:-1-30bar
5.Pressure transducer precision:0.1bar
6.Air outlet temperature sensor range:0-100℃
7.Air outlet temperature sensor precision:0.1℃
8.Air outlet temperature sensor powered by:2#7 batteries,3.2VDC,wireless
Optional:
1.Android pad
2.Wireless printer
3.HFO-1234yf applicable
